The software-hardware complex NetUP Stream Processor is a high-performance, multifunctional media server for solving video streaming tasks of any scale. From event broadcasting to building the core of broadcast for IPTV and OTT-operators.
It allows you to capture any IP streams (from cameras, encoders, VCs, VoD or third-party providers), transcode, embed dynamic graphics (logos, timers), record streams to an archive (CatchUP, Timeshift), protect them using tokens and AES encryption, deliver to any customers (STB, WEB-browsers, mobile devices, Smart TV)
Where to use
OTT Solutions
Assume broadcasting to mobile and static devices of different manufacturers, which requires broadcasting in several resolutions with automatic (adaptive) bitrate switching support.
CATV Networks
Use NetUP Stream Processor for adapting the modern streams which are broadcasted in h.264, for the widely used old set-top boxes, which support only MPEG-2 with a high sensitivity to a signal quality.
Mosaic TV
Is used for visual monitoring of the presence and quality of the picture in various systems of TV broadcasting, video monitoring, event broadcasting.
Localization of TV channels
Embedding of different graphics (adding subtitles, inserting logos, advertising) including dynamic graphics (control record timer).
Product features

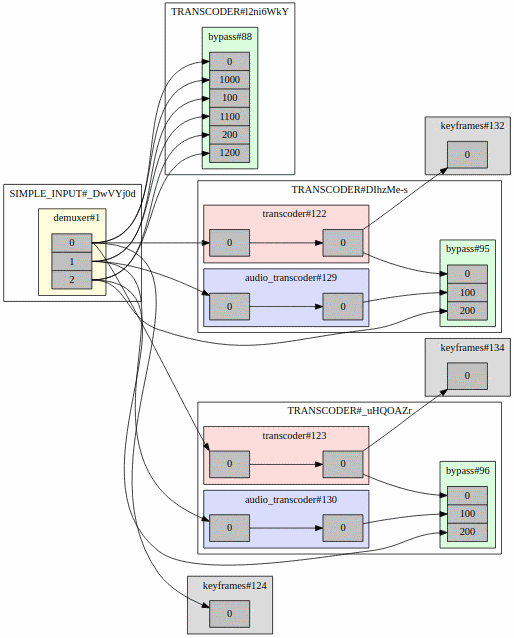

- multilevel topology that allows you to create graphs for processing multimedia streams;
- automatic rebuilding of the topology at any level when changing the streaming parameters (a set of elementary streams, codecs, etc.);
- reusing the results of each node's workflow for saving resources;
- creating mosaic channels with arbitrary location and size of cells in a convenient web editor;
- insertion of dynamic graphics (running text);
- on-line monitoring of the state of each task performed and the status of server;
- GraphQL API;
- ability to create samples of elementary streams for applying batch actions;
- web-based file manager;
- broadcast from files without preliminary transcoding;
- based on NetUP SystemOS
Tech specs
Receiving
Formats: UDP, RTP, RTSP, RTMP, HTTP, HLS, DASH, SRT, Media Files
Video codecs: MPEG-2/H.262, AVC/H.264, HEVC/H.265
Audio Codecs: AAC, MP2, MP3, AC-3
Broadcasting
Formats: UDP, RTMP publish, HTTP, HLS, DASH, SRT
Video codecs: MPEG-2/H.262, AVC/H.264, HEVC/H.265
Audio Codecs: AAC, MP2, MP3
Performance
up to 60SD/14HD transcoding channels to MPEG-2
up to 50SD/12HD transcoding channels to AVC
up to 30SD/6HD transcoding channels to HEVC
Amazing brand new management interface
Device Overview
Status of all nodes
- Started or stopped, errors
- Sort by operation mode (receiving, processing, etc.), date of creation, name, source
- Online download indicators
- Node statistics
- Recording or parallel broadcast in various formats
Easy setup
for any type of processing

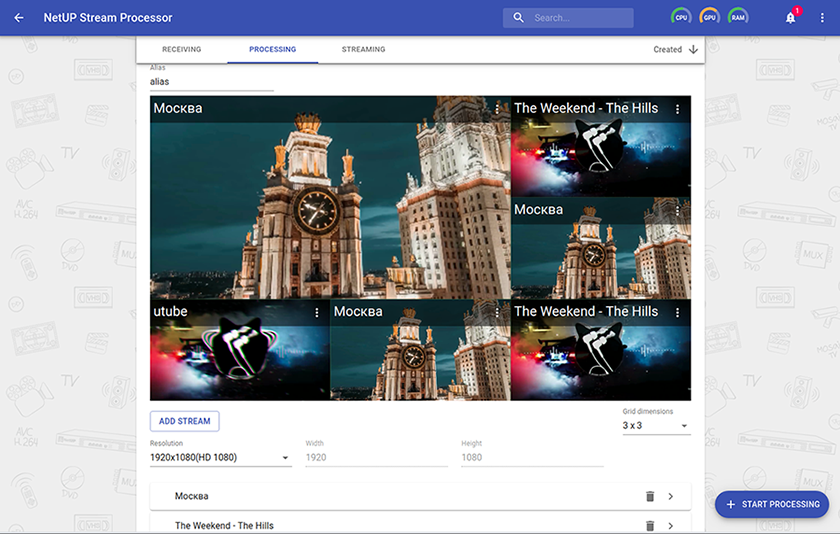

- Convenient editor for mosaic and graphics overlay
- Adaptive Interface Design
- Inline Learning
- Export-import configuration
- View keyframes on the fly
