NetUP Streamer HEVC allows receiving HDMI streams, encoding to the latest high-performance HEVC (H.265) codec, as well as MPEG-4 AVC (H.264) + MPEG Layer2, and broadcasting the received channels to an IP network using UDP and RTP (SPTS or MPTS).
Models

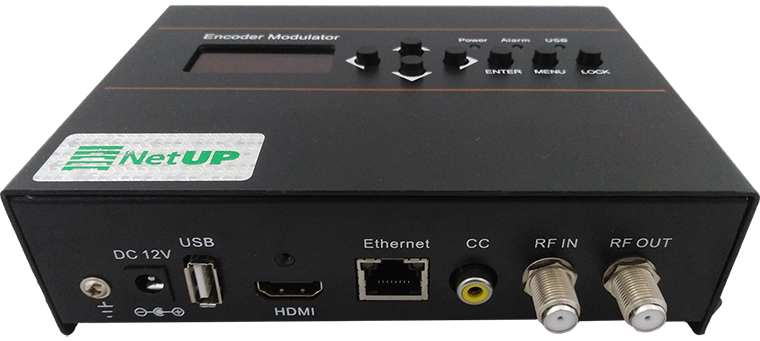

Compact single-channel encoder with HEVC support and simultaneous broadcast to IP and DVB networks
Design
Desktop
Power supply: 220 Volts, 50/60 Hz
Dimentions (W x L x H) 160 х 120 х 52 mm
Performance
Up to 15Mbps in H.264 / H.265
Resolution up to 1080х60p
MP2, AAC up to 128kbps
UDP, RTSP
Interfaces
1 Gigabit Ethernet port
1 USB port for recording or streaming files
1 HDMI
WEB-interface for management
1 RF input (loop-through)
1 RF output (DVB-C, DVB-T opt.)

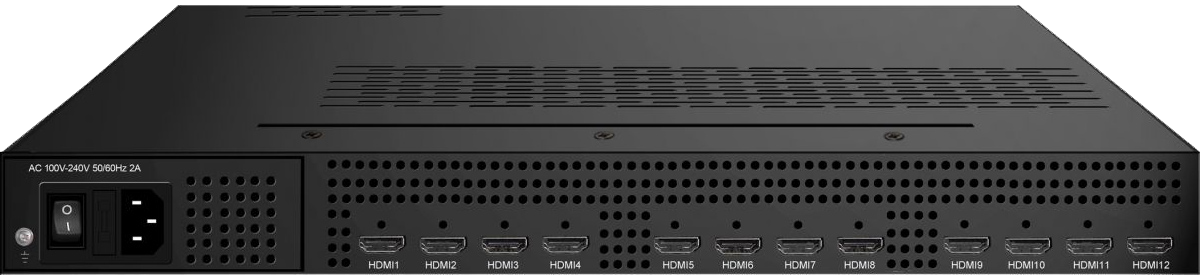

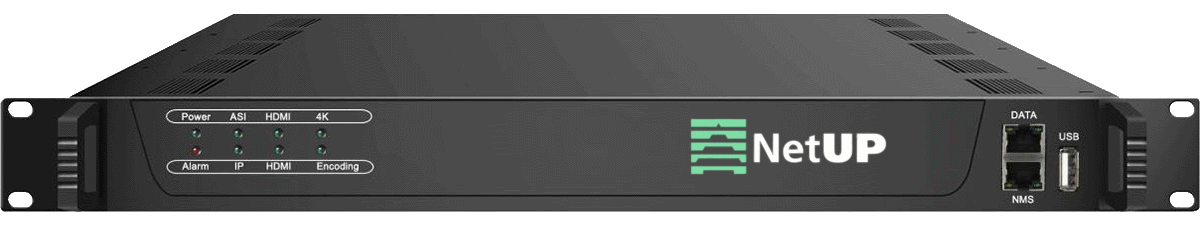

Multichannel operator-class encoder with HDMI 1.4 support and video up to 4K@30.
Design
Rackmount 19”, 1U
Power supply: 220 Volts, 50/60 Hz
Dimentions (W x L x H) 480 х 400 х 44 mm
Performance
2, 4 or 6 UltraHD channels
4, 8 or 12 FullHD channels
Up to 20Mbps per channel in H.265/H.264
Low bitrate variability
Resolution up to 3840x2160х30p
MP2, AAC up to 384kbps
Interfaces
1 Gigabit Ethernet port for data
1 Fast Ethernet port for management
4, 8, 12 HDMI or HD-SDI inputs
WEB-interface for management

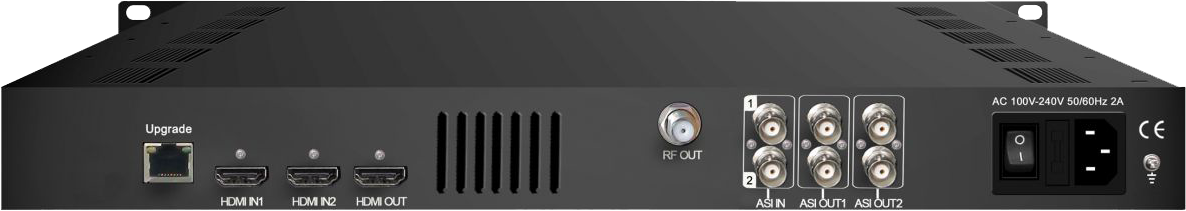

The solution for uncompromising encoding quality with HDMI 2.0 support, 4K@60 and a built-in QAM modulator.
Design
Rackmount 19”, 1U
Power supply: 220 Volts, 50/60 Hz
Dimentions (W x L x H) 480 х 400 х 44 mm
Performance
Up to 23Mbps in H265/H.264 with low bitrate variability
Resolution up to 3840x2160х60p
Chroma up to 4:2:2
Supports MP2, AAC up to 384kbps
DVB modulator with 256QAM support
Interfaces
1 Gigabit Ethernet port for data
1 Fast Ethernet port for management
1 HDMI input(additional port for reserve and loop out)
2 ASI inputs, 2 ASI-outputs
1 RF output
