NetUP Streamer DVB-8xC is an easy way to rebroadcast digital satellite TV channels to your cable network. This device combines DVB and IP receivers, decoder, remuxer and QAM modulator for 4 non-adjacent frequencies (J.83A, J.83B).
Each of the four installable CAM-modules can decode TV channels from any tuner.
Tech specs
Design, interfaces

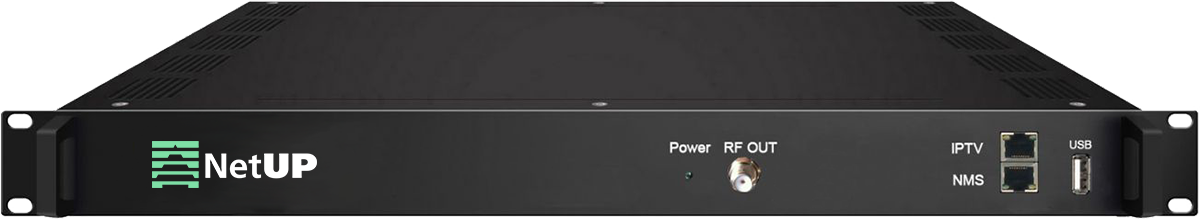

Rackmount 19”, 1U, 480 x 44 x 310 mm
Power supply: 220V, 50/60 Hz
Inputs: 8 DVB-S/S2, 1 Gigabit Ethernet for data, 1 Fast Ethernet for management
4 CI-slots for CAM-modules
Outputs: 1 RF
Modulator
The frequency range is 30-1000Mhz, the step is 1Khz
The signal level is -25- -1dBm, step 0.1
MER >= 42dB
Symbol rate is 5-7Msps, the step is 1Ksps
Modulation - 16, 32, 64, 128, 256 QAM
Features
PCR accurate tuning
CA PID filtering
PSI/SI Editing
IP input for 128 SPTS/MPTS
