Sources of broadcasting
Satellites
Terrestrial antennas
Cable Networks
IP providers
Storage
IP Cameras
Content receivers
Set-top boxes
Smart TV
Mobile phones, tablets
Web browsers
Storage
Facilities
Recieving content
from any sources
Broadcasting to any
devices
Online broadcast recording
Support of the following formats:
HLS, MPEG-DASH, RTMP
UDP
Saving meta-data
(for example, a program guide)
in a DBMS
Generation of
preview frames
for TV channels
Optional
Transcoding to MPEG-2, H.264 (AVC), H.265 (HEVC)
Content encryption before broadcasting
Generating a Mosaic Channel
Access protection with the use of
one-time keys (tokens)
Supports up to 64 satellite adapters
Easy-to-use management interface

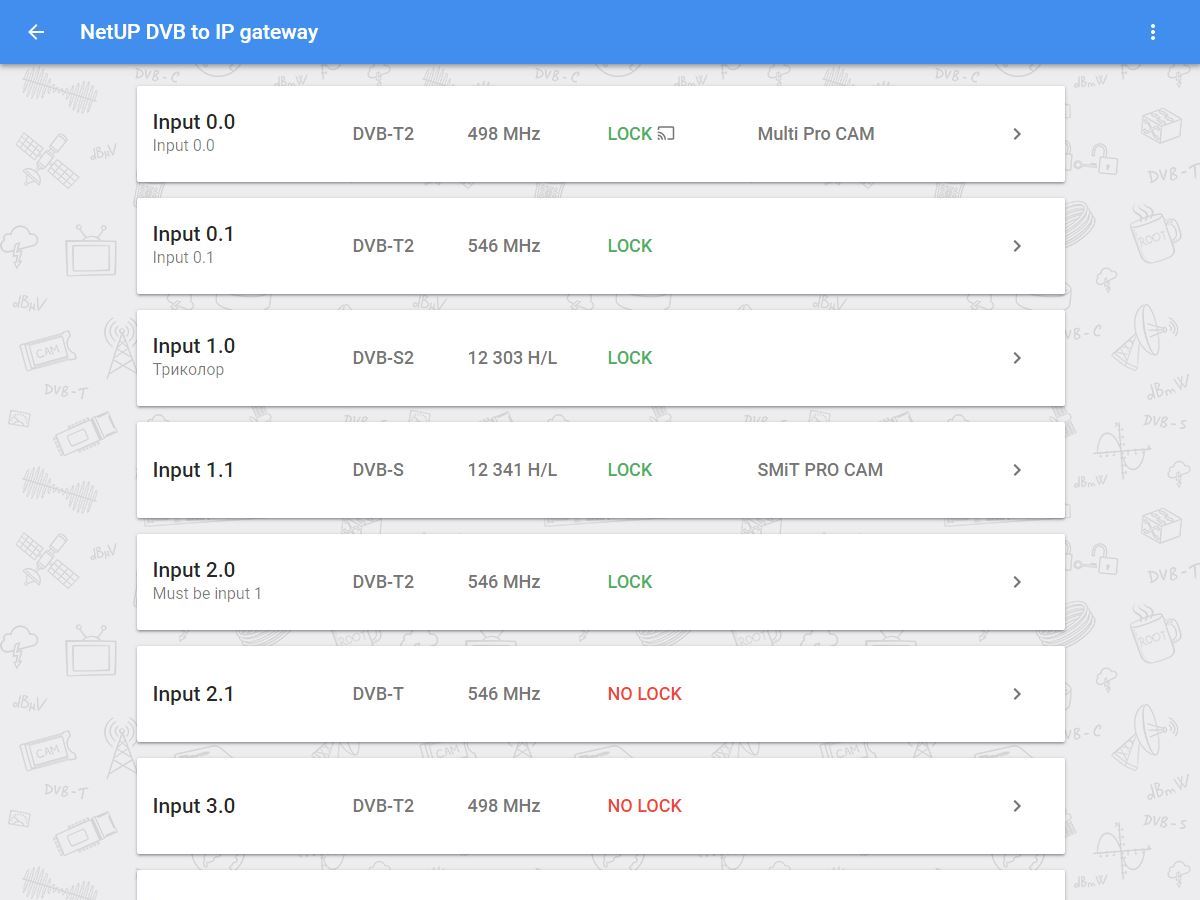

Device Overview
Status of all adapters
- Stopped or started
- Operation mode (DVB-S, DVB-S2, etc...)
- Tuned transponder or multiplex
- Presence of LOCK and broadcast of TV channels
- Installed CA-module
- Comments

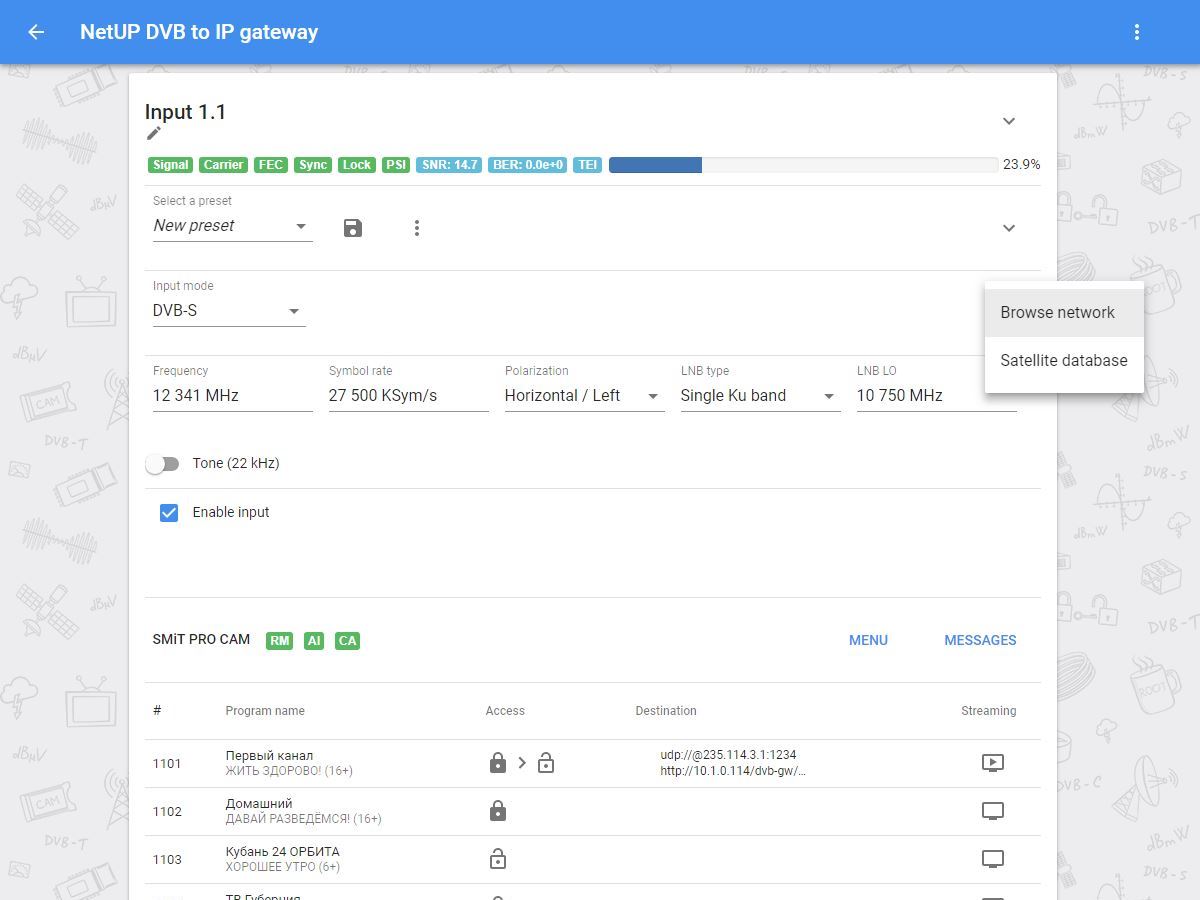

Easy setup of reception
for any type of signal
- Live indicators - real-time display of signal level, errors, status of service tables
- Output of the current program for each TV channel (EPG)
- Overview of the received satellite network
- Built-in catalog of satellites
- Adaptive design - convenient use from mobile devices

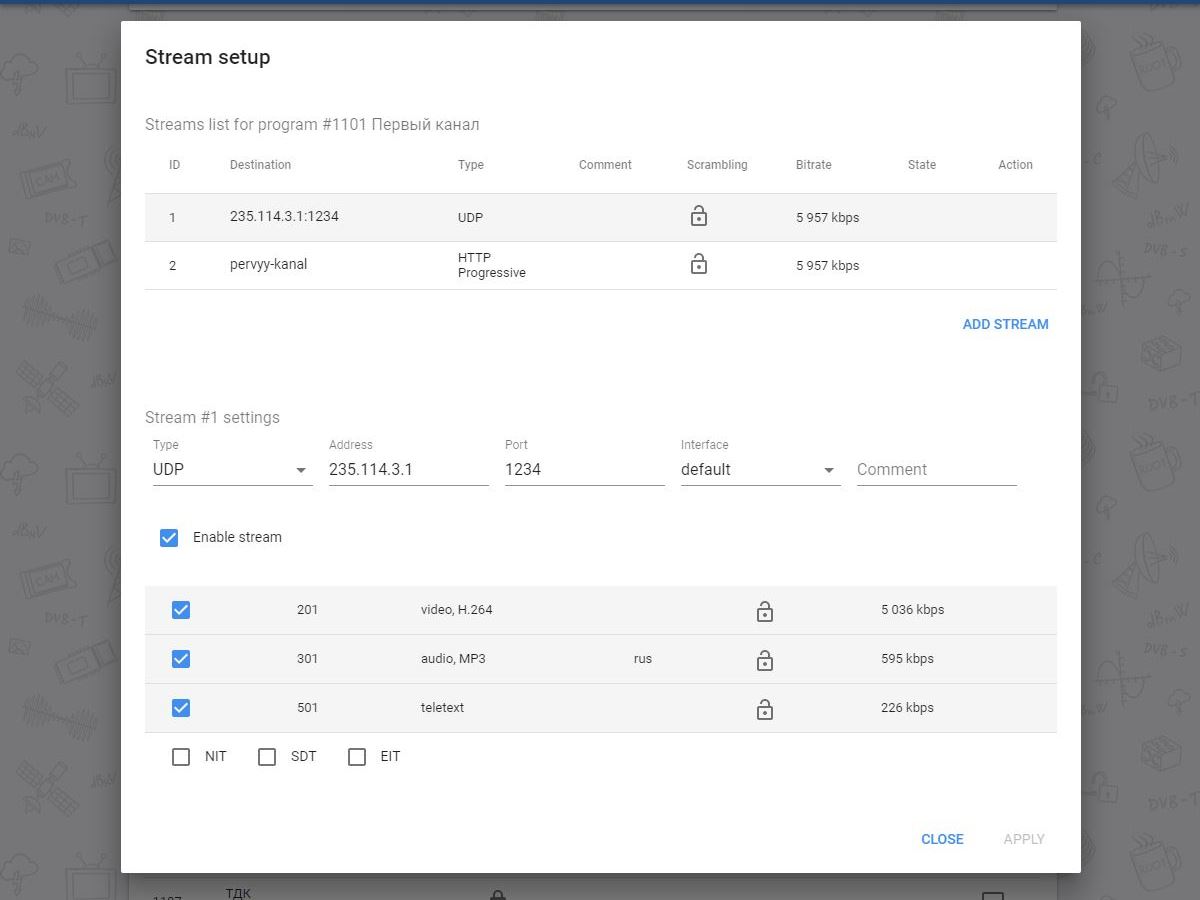

Flexible broadcasting
for supporting a variety of devices
- HTTP Progressive
- HLS, MPEG-DASH
- UDP, IPv6 multicast
- Parallel broadcast in various formats
- PID selection
- The current bitrate for the channel and for each PID separately

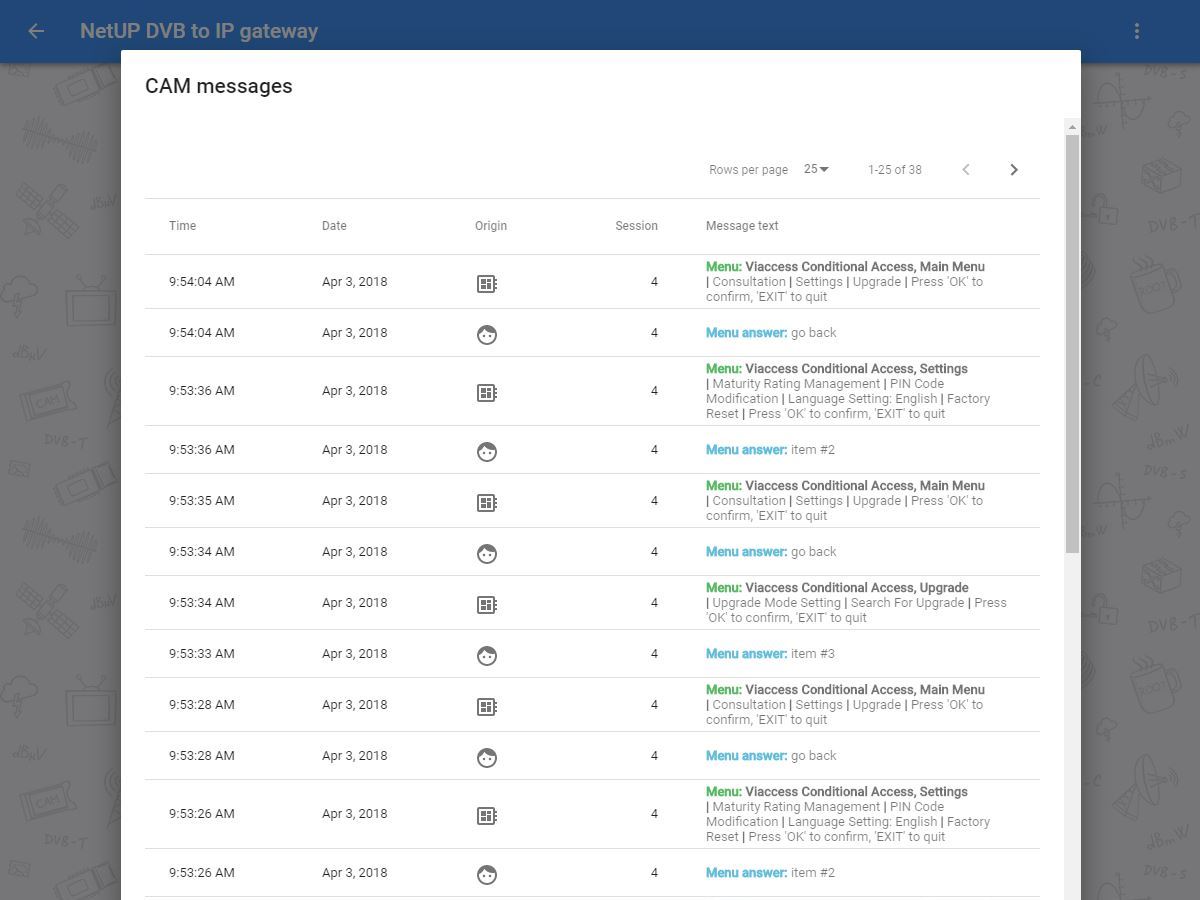

Advanced tools for working with CA-modules
- CAM Resource Status
- Established Sessions
- Full CAM menu
- Messages

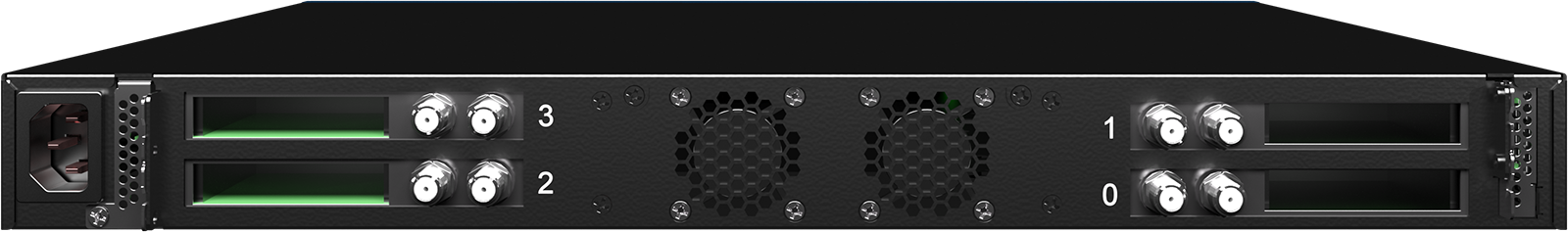

DVB to IP Gateway for TV providers to receive up to 32 satellite transponders (FTA, DVB-S2X) or up to 8 transponders or multiplexes with CI and IPTV channels (more than 100 TV channels with the total speed of over 900Mbps).
Design
Rackmount 19”, 1U
Power: 90–264V A.C., 47–63 Hz
PSU 250w
Dimensions: 440 х 44 х 410 mm
Management
LCM for initial setting and statistics
Web-based managment interface
RS-232 console
VGA, USB
Interfaces
4 Gigabit Ethernet 10/100/1000
up to 8 Common Interfaces
up to 8 universal DVB-S2/T2/C2,
ISDB-T inputs
or up to 32 DVB-S2X FTA inputs

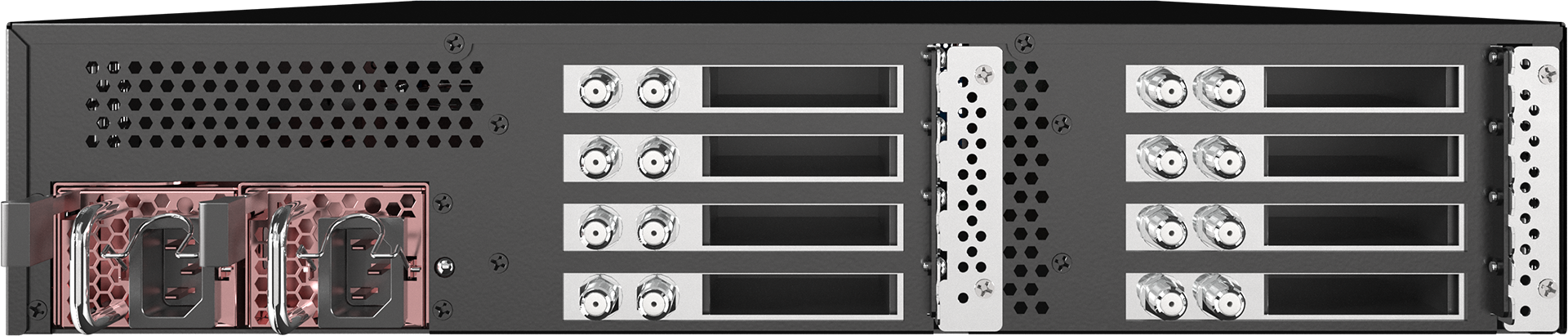

DVB to IP Gateway for TV providers to receive up to 64 DVB-S2X FTA or up to 16 satellite transponders or multiplexes with CI and IPTV channels (more than 200 TV channels) with redundant power supply and hot-swap storage.
Design
Rackmount 19”, 2U
Power: 90–264V A.C., 47–63 Hz
Two PSUs 250w each
Dimensions: 440 х 88 х 580 mm
Management
LCM for initial setting and statistics
Web-based managment interface
RS-232 console
VGA, USB
Interfaces
4 Gigabit Ethernet 10/100/1000
up to 16 Common Interface
up to 16 universal DVB-S2/T2/C2,
ISDB-T inputs
or up to 64 DVB-S2X FTA inputs

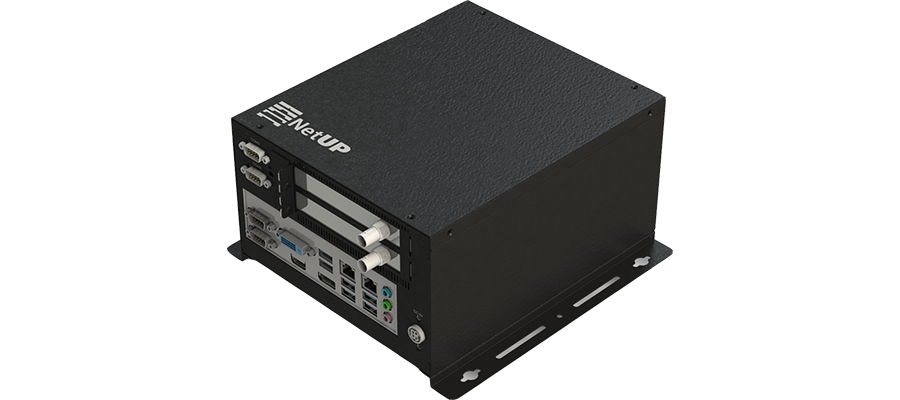

Compact DVB to IP Gateway for receiving up to 50 or more channels from 4 satellite transponders or multiplexes with CI or up to 16 DVB-S2X FTA inputs. Ideal for small objects.
Design
Desktop or wall mounting
Power: 12V D.C.,
or 100-240V A.C., 47–63 Hz
PSU 150w
Dimensions: 200 x 235 x 120 mm
Management
Web-based managment interface
RS-232 console
4 USB ports
DVI/VGA
Interfaces
2 Gigabit Ethernet 10/100/1000
up to 4 Common Interfaces
up to 4 universal DVB-S2/T2/C2,
ISDB-T inputs
or up to 16 DVB-S2X FTA inputs
